--wh165型
wh165 insulating footstalk rotating carbon film potentiometer

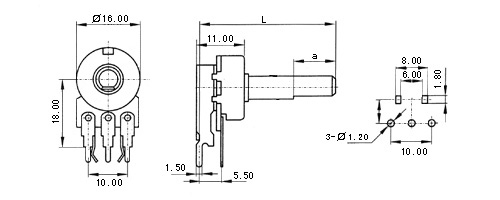

no.1
overall
overall dimension installation dimension
wh165n1a-□-
x

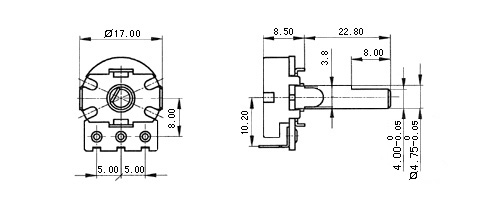

no.2
overall
overall dimension installation dimension
wh148n1d-s1
total rotational
290°±5°
nominal power
a:0.033w;b、c:0.017w
rotational torque
3～15mn.m
max operating volerance
a:ac160v;b、c:ac100v
rotationa stopper strength
600mn.m
terminal power
r≥250kω 0.1%r max
250kω＞r＞10kω 20ω max
10kω≥r 10ω max
push pull strength
60n
slide noise
r≤100kω,≤33mv;r>100kω,≤47mv
total resistance range
500ω～500kω
insulation resistance
more than 100mω at dc250v
total resistance tolerance
±20%
withstand voltage
ac300v /1 minute
resistance taper
a、b、c
rotational life
10,000 cycles
