wh148 series of footstalk rotating carbon film potentiometer

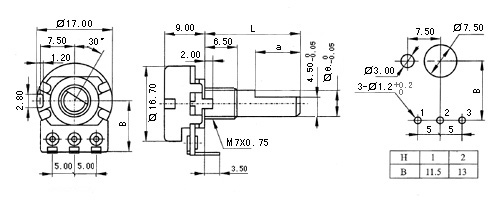

    no.1
overall overall dimension installation dimension
wh148n1a□-□a□-
        h  x  y

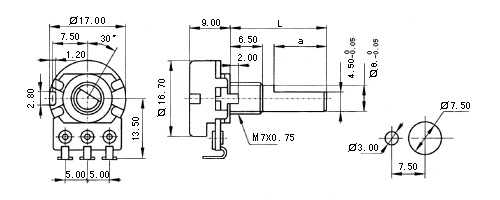

    no.2
overall overall dimension installation dimension
wh148n1b-□a□-
         x  y

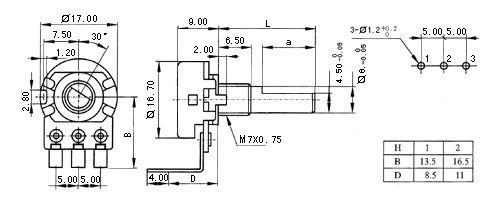

    no.3
overall overall dimension installation dimension
wh148n1c□-□a□-
        h  x  y

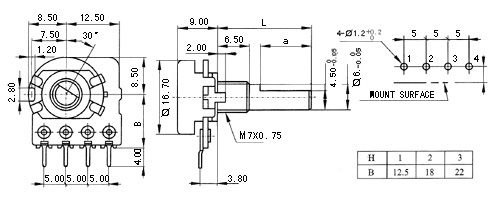

    no.4
overall overall dimension installation dimension
wh148n1d□-□a□-
        h  x  y

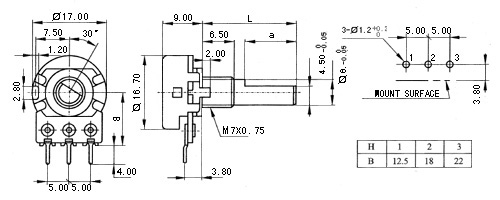

    no.5
overall overall dimension installation dimension
wh148n4a□-□a□-
        h  x  y

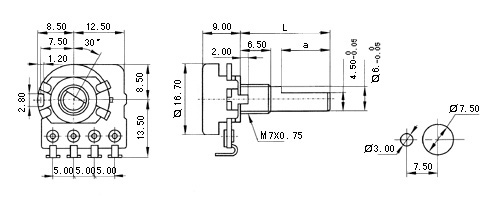

    no.6
overall overall dimension installation dimension
wh148n4b-□a□-
         x  y
total rotational 300°±10° nominal power 0.2w/0.1w
rotational torque 2～20mn.m max operating volerance ac150v
rotationa stopper strength 700mn.m terminal power r≥250kω            0.1%r max
250kω＞r＞10kω     20ω max
10kω≥r            10ω max
push pull strength 80n
    slide noise ≤47mv
total resistance range 500ω～2mω insulation resistance more than 100mω at dc500v
total resistance tolerance ±20%(more than 1mω±30%) phase tolerance a、c、d:≤3db at-40～0db
resistance taper a、b、c、d b:≤±2db at 50% position
withstand voltage ac500v 1 minute operation life 10,000 cycles
