wh138 series of footstalk rotating carbon film potentiometer

    no.1

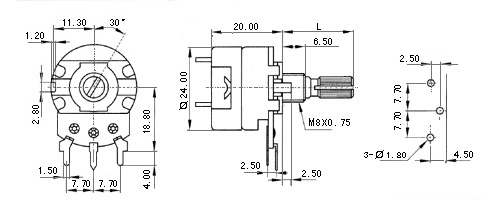

overall overall dimension installation dimension
wh138n1a-□a-
         x



    no.2

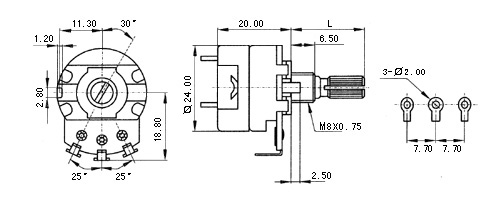

overall overall dimension installation dimension
wh138n1b-□a-
         x



    no.3

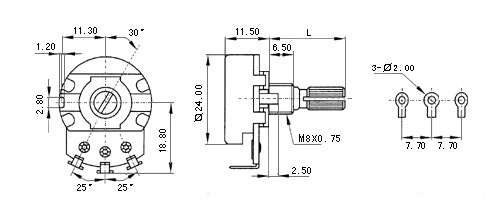

overall overall dimension installation dimension
wh138n1d-□a-
         x



    no.4

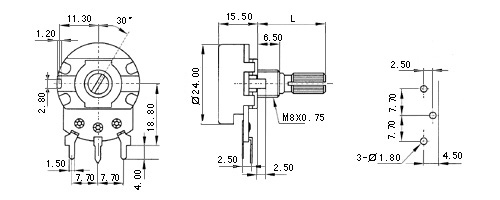

overall overall dimension installation dimension
wh138n1a-k□a-
          x



    no.5

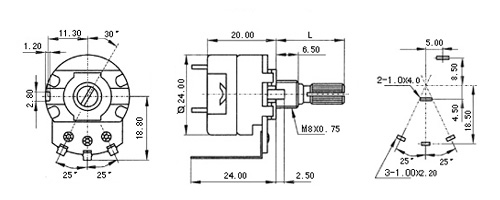

overall overall dimension installation dimension
wh138n1b-k□a-
          x



    no.6

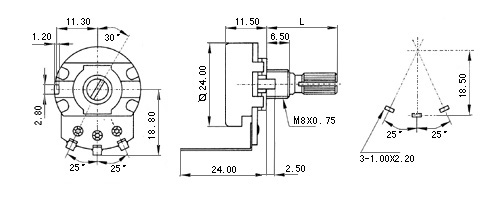

overall overall dimension installation dimension
wh138n1d-k□a-
          x



    no.7

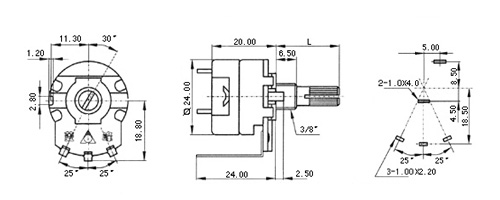

overall overall dimension installation dimension
wh138n1d-k□s1-
          x
total rotational 300°±5° nominal power a:0.25w; other than0.5w
rotational torque 2～20mn.m max operating volerance ac160v
rotationa stopper strength 600mn.m terminal power r≥250kω            0.1%r max
250kω＞r＞10kω     20ω max
10kω≥r            10ω max

swich operating angle 50°±10° slide noise ≤47mv
total resistance range 500ω～1mω insulation resistance more than 100mω at dc250v
total resistance tolerance ±20%(more than 1mω±30%) withstand voltage 开关 ac1000v/1 minute 电阻 ac600v/1 minute
resistance taper a、b、c switch operating voltage、carrent dc250v    1a    dc250v    3a
switch connect resistance less than 30mω rotational life 10,000 cycles
