--wh125型
wh125、wh105 insulating footstalk rotating carbon film potentiometer
no.1
overall

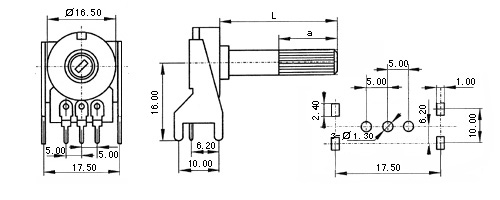

overall dimension installation dimension
wh125n1a-□-
x
no.2
overall
overall dimension installation dimension
wh105n1a-□-
x
total rotational
290°±5°
nominal power
a:0.033w; b、c:0.017w
rotational torque
3～15mn.m
max operating volerance
a:ac160v; b、c:ac100v
rotationa stopper strength
600mn.m
terminal power
r≥250kω 0.1%r max
250kω＞r＞10kω 20ω max
10kω≥r 10ω max
push pull strength
60n
shaky degree
0.7×l/30mmp.p max
slide noise
r≤100kω,≤100mv;r.>100kω,≤47mv
total resistance range
500ω～500kω
insulation resistance
more than 100mω at dc500v
total resistance tolerance
±20%
withstand voltage
ac300v/1 minute
resistance taper
a、b、c
rotational life
10,000 cycles
