--wh112¡¢wh115ÐÍ
wh112¡¢wh115 series potentiometer

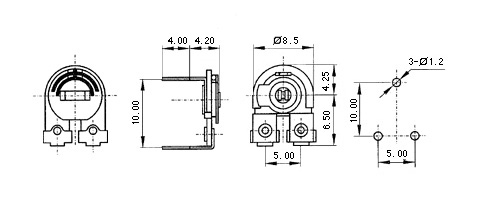

no.1
overall
overall dimension installation dimension
wh112na3

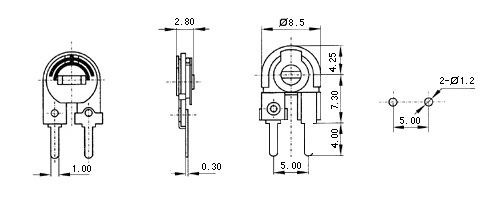

no.2
overall
overall dimension installation dimension
wh112n1a

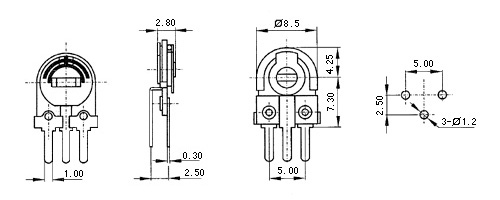

no.3
overall
overall dimension installation dimension
wh112n1d

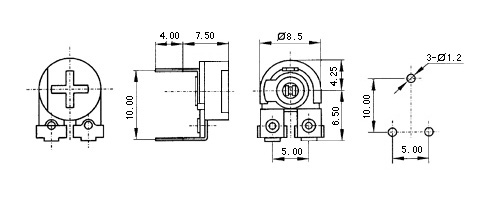

no.4
overall
overall dimension installation dimension
wh112n1d-s-
total rotational
210¡ã¡À10¡ã
nominal power
0.1w
rotational torque
2¡«35mn.m
max operating volerance
ac50v/dc20v at 50¡æ
rotationa stopper strength
500mn.m
terminal power
r¡Ý250k¦Ø 0.1%r max
250k¦Ø£¾r£¾10k¦Ø 20¦Ø max
10k¦Ø¡Ýr 10¦Ø max
total resistance range
500¦Ø¡«1m¦Ø
slide noise
¡Ü47mv
total resistance tolerance
¡À20%
insulation resistance
¡Ý20m¦Ø at dc100v
resistance taper
a¡¢b
withstand voltage
ac200v 1 minute
operation life
10,000 cycles
welding tin temperature
260¡æ 5s 360¡æ 3s
