--r17、r17-k型
r17、r17-k series of footstalk rotating carbon film potentiometer

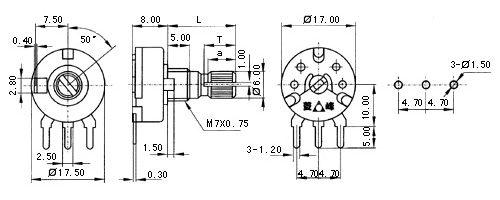

no.1
overall
overall dimension installation dimension
r17n1a-□a-
x

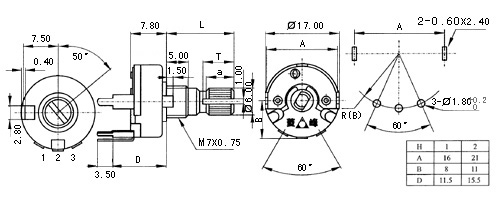

no.2
overall
overall dimension installation dimension
r17n1b□-□a-
h x

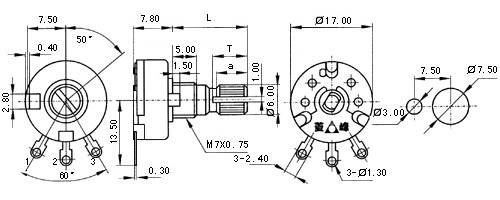

no.3
overall
overall dimension installation dimension
r17n1d-□a-
x
no.4
overall
overall dimension installation dimension
r17n1c□-□a-
h x
total rotational
240°±10°
nominal power
0.1w
rotational torque
2～15mn.m
max operating volerance
ac150v
rotationa stopper strength
400mn.m
terminal power
r≥250kω 0.1%r max
250kω＞r＞10kω 20ω max
10kω≥r 10ω max
push pull strength
80n
slide noise
≤47mv
total resistance range
500ω～1mω
insulation resistance
more than 50mω at dc500v
total resistance tolerance
±20%(more than 1mω±30%)
max pierating voltage
ac150v
resistance taper
a、b、c、
switch connect resistance
less than 10mω
operation life
10,000 cycles
switch operating voltage/carrent
dc12v 1a
first
back
next
end
total 2 page,now1/2
