--r100ÐÍ
r100 series of footstalk rotating disk carbon film potentiometer

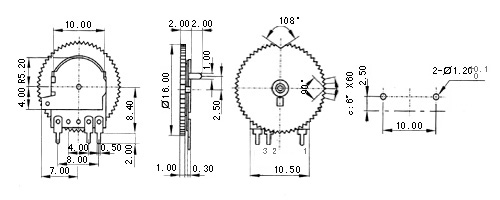

no.1
overall
overall dimension installation dimension
r100na-

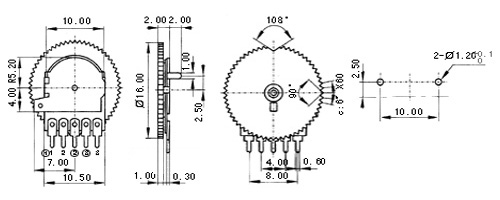

no.2
overall
overall dimension installation dimension
r100gad-

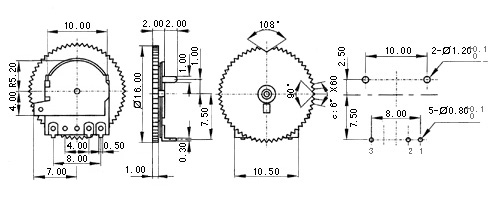

no.3
overall
overall dimension installation dimension
r100nb-

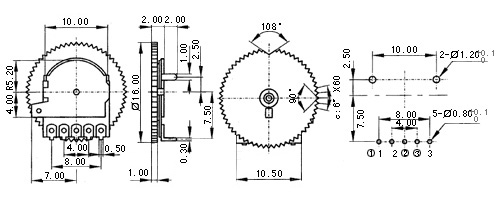

no.4
overall
overall dimension installation dimension
r100gb-

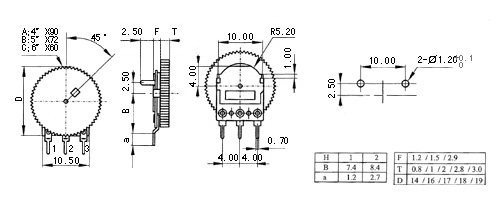

no.5
overall
overall dimension installation dimension
r100nah-
total rotational
270¡ã¡À5¡ã
nominal power
0.05w
rotational torque
3¡«15mn.m
max operating volerance
ac50v/dc20v
rotationa stopper strength
600mn.m
terminal power
r¡Ý250k¦Ø 0.1%r max
250k¦Ø£¾r£¾10k¦Ø 20¦Ø max
10k¦Ø¡Ýr 10¦Ø max
total resistance range
500¦Ø¡«1m¦Ø
slide noise
¡Ü47mv
total resistance tolerance
¡À20%(more than 1m¦Ø¡À30%)
insulation resistance
more than 100m¦Ø at dc100v
welding tin temperature
260¡æ£º5s 350¡æ£º3s
withstand voltage
for 1 minute or more at ac100v
resistance taper
a¡¢b¡¢c¡¢d¡¢rd¡¢e¡¢g¡¢k¡¢w¡¢mn
operation life
10,000 cycles
